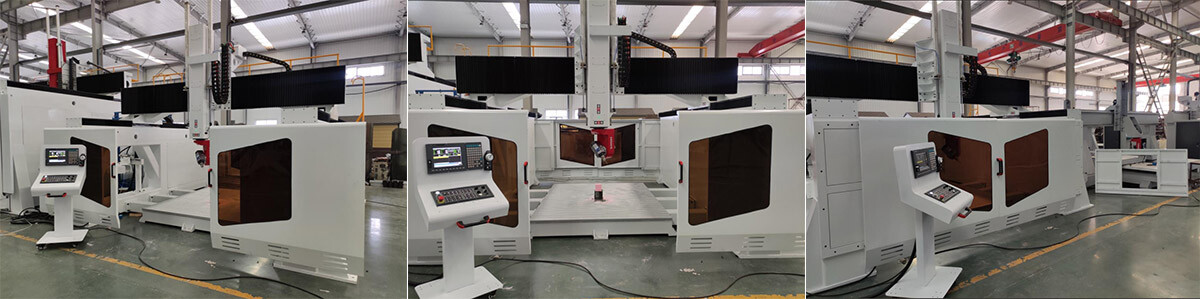

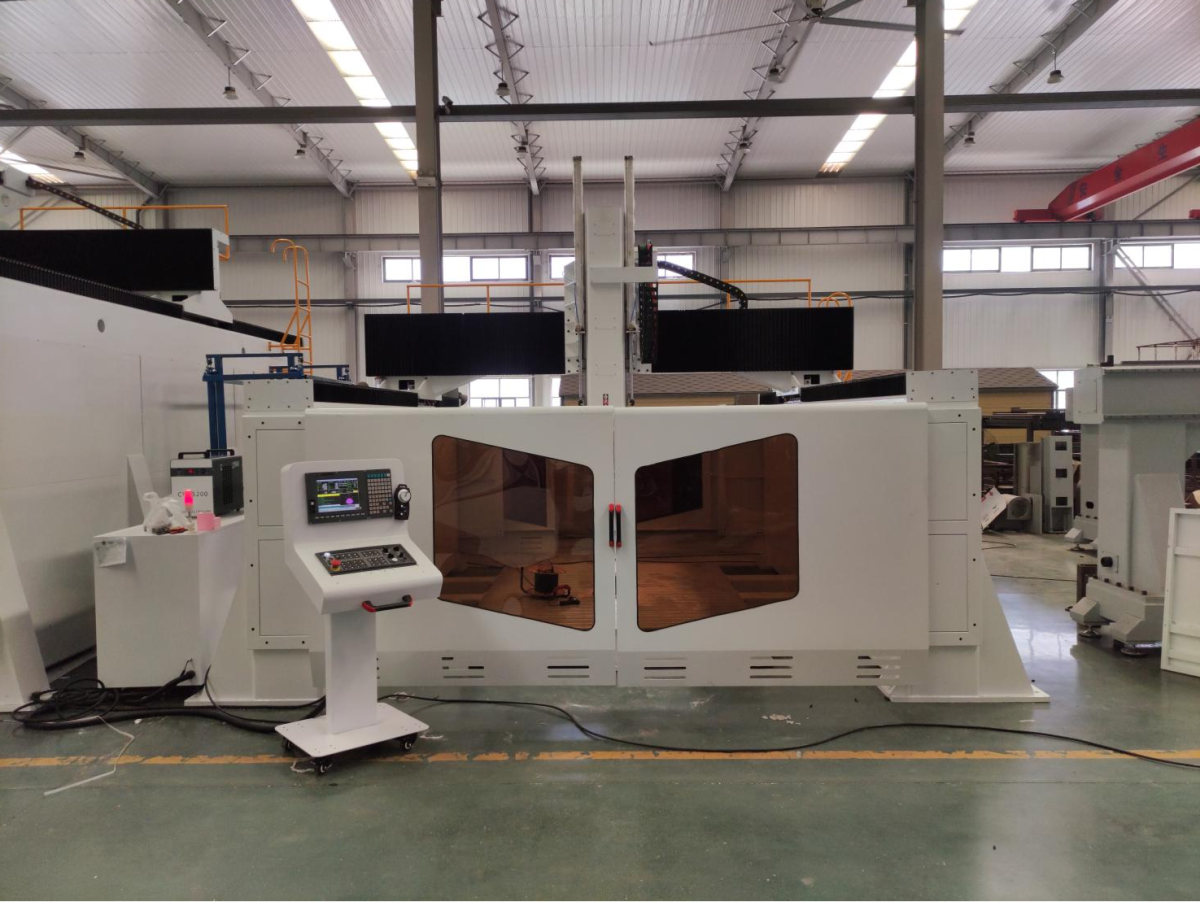

Product introduction: The HJS2030-V5 five-axis high-speed milling center incorporates a high-dynamic performance machining concept, giving it the high-speed and high-precision characteristics required to process complex surfaces. It is widely used in the processing of complex aluminum alloy steel parts in aircraft, high-speed rail and other industries. . HJS2030-V5 five-axis linkage machining center is an advanced technology five-axis linkage machining center independently developed by the company. It has a patented transmission structure, extended A and C dual rotation axes, and matches the stiffness and quality parameters of the machine tool, making it high-end with fast response. product.
Features: HJS2030-V5 five-axis linkage machining center is suitable for large and medium-sized mold manufacturing and processing of aluminum alloy structural parts. It is an ideal equipment for processing parts with high precision requirements and complex shapes, as well as the mold industry and the aerospace industry.
Product configuration (optional)

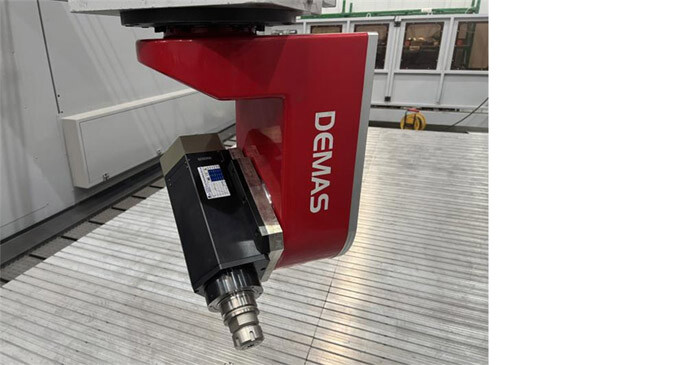

| 5 axis head
This cutter head has an L-shaped design, compact structure, and stable rotation at high speed. It is suitable for light drilling, milling, and cutting under medium load. |

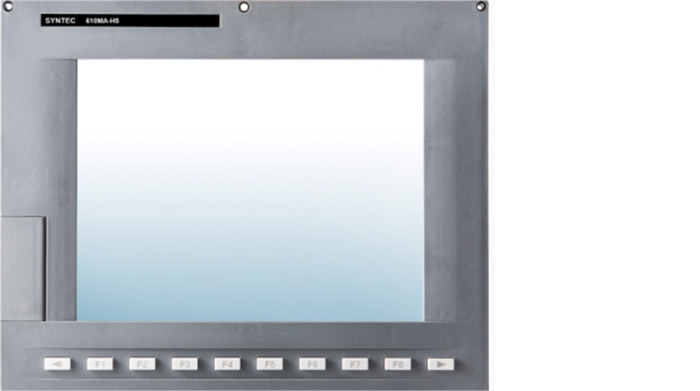

| SYNTEC system
High precision: The Syntec system uses high-precision control technology to achieve high-precision processing and production, ensuring product quality and accuracy. Easy to operate: The operation interface of the Syntec system is simple and easy to understand, and the operation is convenient and fast, so you can get started quickly. Stable and reliable: Syntec system adopts stable and reliable hardware and software design to ensure the stability and reliability of the system. |

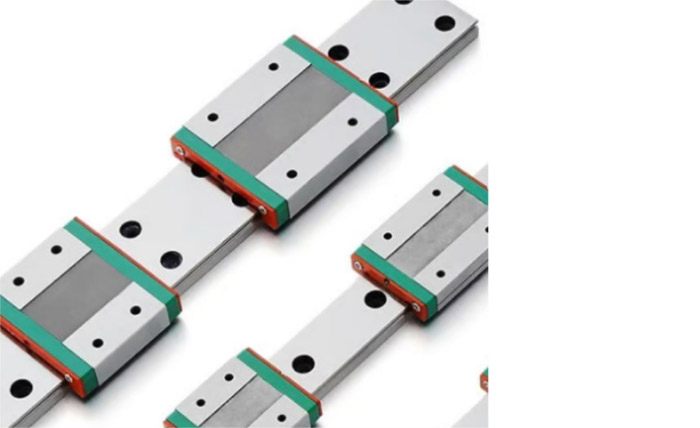

| Silver guide rail
HIWIN HG series linear guide adopts arc groove design, optimized structure, higher load capacity and rigidity than similar products, with equal radial, reverse radial and lateral load ratings, and has the function of automatic alignment to absorb installation errors, making it HG series linear guides achieve high speed, high precision, smooth linearity and long life. |

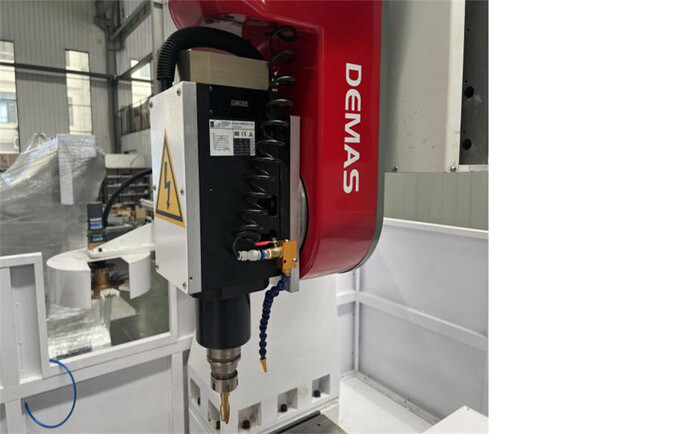

| Italian OLI spindle:Pneumatic services:
One air inlet for tool loading, one air inlet for unloading, one air nozzle for cone cleaning and pressurization; front seal with compressed air cleaning embedded in the shaft; aluminum frame; shaft heat-treated; for vector control encoder (optional); low speed and high torque; high performance motor |
Configuration list
Name | Quantity |
1. Taiwan SYNTEC 610MA panel5-axissystem (RTCP enabled) | 1 |
2. X-axis Japan YASKAWA 1.3KW large inertia servo motor | 1 |
3. Y-axis Japan YASKAWA 1.3KW large inertia servo motor | 1 |
4. Z-axis Japan YASKAWA 1.3KW large inertia brake servo motor | 1 |
5. Italian HITECO water-cooled spindle 10kw automatic tool changer, Italian DEMAS5-axishead | 1 |
6. X-axis Taiwan YYC high-precision grinding rack | 1 |
7. Y-axis Taiwan YYC high-precision grinding rack | 1 |
8. Z-axis Taiwan T-WIN4040 high-precision screw | 1 |
9. X-axis Taiwan T-WIN45 square rail-flange slider | 3 |
10. Y-axis Taiwan T-WIN45 square rail-flange slider | 2 |
11. Z-axis Taiwan T-WIN30 square rail-flange slider | 4 |
12. Taiwan 11KW Delta vector inverter | 1 |
13. Aluminum alloy T-slot countertop | 1 |
14. Effective stroke 2000x3000mm |
|
15. Central gas storage system | 1 |
16. Central lubrication device | 1 |
17. 8 tool changer handles | 8 |
18. Spring knife holder and inspection tool | 1 |
19. Factory quality inspection sheet | 1 |
20. Certificate | 1 |
Technical Parameters
Name | parameter |
X-axis maximum travel | 2000mm |
Y-axis maximum travel | 3000mm |
Z-axis maximum travel | 1000mm |
Maximum gantry width | 3800mm |
Maximum gantry width | 2200mm |
A-axis swing angle | -120°⁓120° |
C-axis rotation angle | -400°⁓400° |
X, Y axis movement speed | 0⁓40000mm/min |
Z axis movement speed | 0⁓10000mm/min |
A. C-axis movement speed | 170、270°/sec |
X, Y axis feed speed | 0⁓20000mm/min |
Z axis feed speed | 0⁓5000mm/min |
X, Y, Z axis feed acceleration | 3m/s2 |
Workbench load-bearing | 1000kg |
Spindle maximum speed | 24000r/min |
Maximum output power | 22kw |
Machine packaging size | 4.6x3.8x3.7mLWH |
Machine weight | 10ton |
