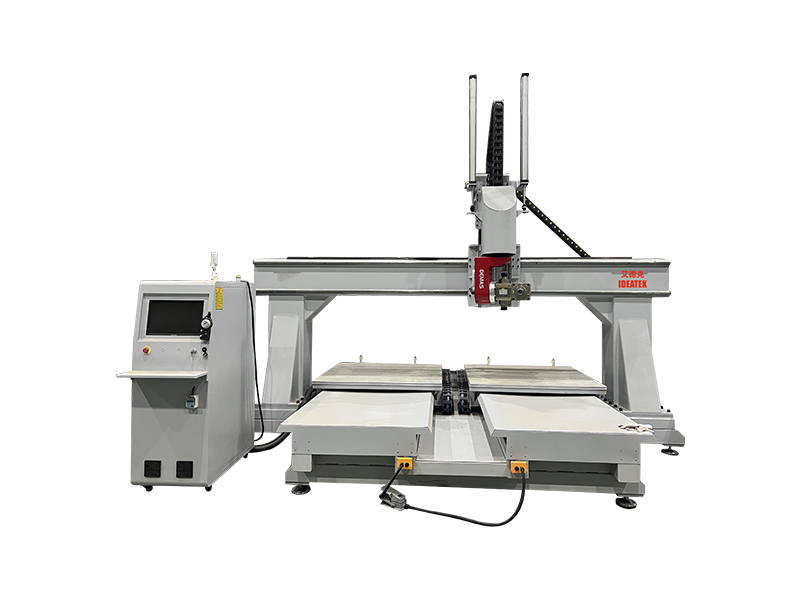

HJD1212-V5
Tel: +86 187 0640 8064
WhatsApp: +86 187 0640 8064
Email: ideatekhongi@gmail.com
CONTACT
WhatsApp

Product Details

Configuration list


NameQuantity
1. Taiwan SYNTEC 610MA standard 5-axis system (open dual RTCP)1
2. X-axis Japan YASKAWA 850KW medium inertia servo motor1
3. Y-axis Japan YASKAWA 850KW medium inertia servo motor2
4. Z-axis Japan YASKAWA 850KW medium inertia brake servo motor1
5. Chinese CMT air-cooled spindle 7.5kwX4 sets, Italian DEMAS 5-axis head1
6. X-axis Taiwan YYC high-precision grinding rack1
7. Y-axis Taiwan TBI-4010 high-precision screw1
8. Z-axis Taiwan TBI-3210 high-precision screw1
9. X-axis Chinese TZK-30 square rail-flange slider3
10. Y-axis Chinese TZK-30 square rail-flange slider4
11. Z-axis China TZK-30 square rail-flange slider2
12. Zhejiang Fuling 11KW vector inverter1
13. Aluminum alloy T-slot countertop1
14. Effective stroke 1200x1200mmX2 pieces
15. Central gas storage system1
16. Central lubrication device1
17. Spring knife holder and inspection tool1
18. Factory quality inspection sheet1
19. Certificate of conformity1


Technical Parameters


NameParameter
X-axis maximum travel2600mm
Y-axis maximum travel1200mm
Z-axis maximum travel600mm
Maximum gantry width4500mm
Maximum gantry height2200mm
A-axis swing angle-120°⁓120°
C-axis rotation angle-400°⁓400°
X, Y axis movement speed0⁓40000mm/min
Z axis movement speed0⁓10000mm/min
A, C-axis movement speed170、270°/sec
X, Y axis feed speed0⁓20000mm/min
Z axis feed speed0⁓5000mm/min
X, Y, Z axis feed acceleration3m/s2
Workbench load-bearing600kg
Spindle maximum speed24000r/min
Maximum output power20kw
Machine packaging size4.5x2.4x3.7m LHW
Machine weight3.6ton
