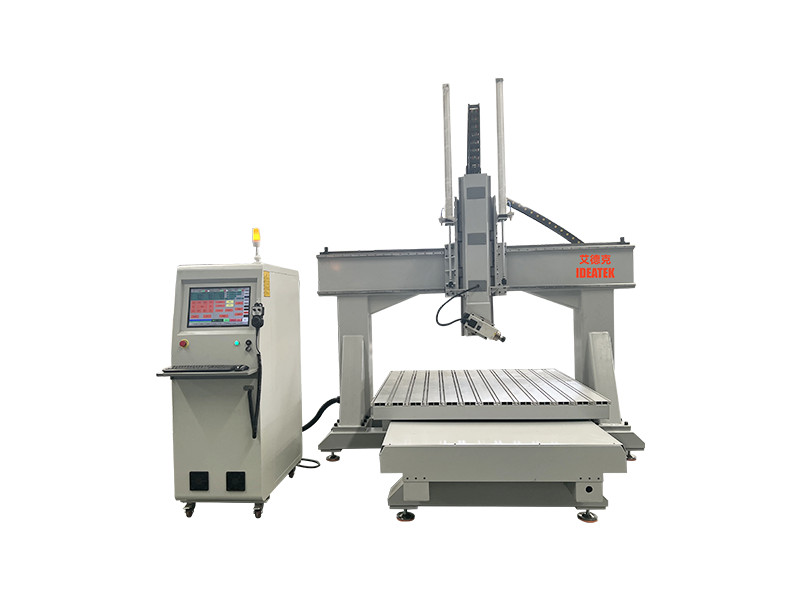

HJS1212-V4
Tel: +86 187 0640 8064
WhatsApp: +86 187 0640 8064
Email: ideatekhongi@gmail.com
CONTACT
WhatsApp

Product Details

Configuration list


NameQuantity
1. Taiwan SYNTEC 60CB standard control system1
2. X-axis Japan YASKAWA 850KW medium inertia servo motor1
3. Y-axis Japan YASKAWA850KW medium inertia servo motor1
4. Z-axis Japan YASKAWA 850KW medium inertia brake servo motor1
5. Chinese HQD air-cooled spindle 7.5kw manual tool change, fourth axis Italian harmonic reducer1
6. X-axis Taiwan YYC high-precision grinding rack1
7. Y-axis Taiwan TBI-4010 high-precision screw1
8. Z-axis Taiwan TBI-3210 high-precision screw1
9. X-axis China TZK-30 square rail-flange slider2
10. Y-axis China TZK-30 square rail-flange slider2
11. Z-axis China TZK-30 square rail-flange slider2
12. Zhejiang Fuling 7.5KW vector inverter1
13. Aluminum alloy T-slot countertop1
14. Effective stroke 1200x1200mm
15. Central gas storage system1
16. Central lubrication device1
17. Spring knife holder and inspection tool1
18. Factory quality inspection sheet1
19. Certificate1


Technical Parameters


NameParameter
X-axis maximum travel1200mm
Y-axis maximum travel1200mm
Z-axis maximum travel600mm
Maximum gantry width3200mm
Maximum gantry height2200mm
A-axis swing angle-120°⁓120°
X, Y axis movement speed0⁓30000mm/min
Z axis movement speed0⁓10000mm/min
A-axis moving speed170、270°/sec
X, Y axis feed speed0⁓20000mm/min
Z axis feed speed0⁓5000mm/min
X, Y, Z axis feed acceleration3m/s2
Workbench load-bearing800kg
Spindle maximum speed18000r/min
Maximum output power15kw
Machine packaging size3.5x2.2x3.7m LHW
Machine weight3.0ton
