  • HJS2412-Q3

›

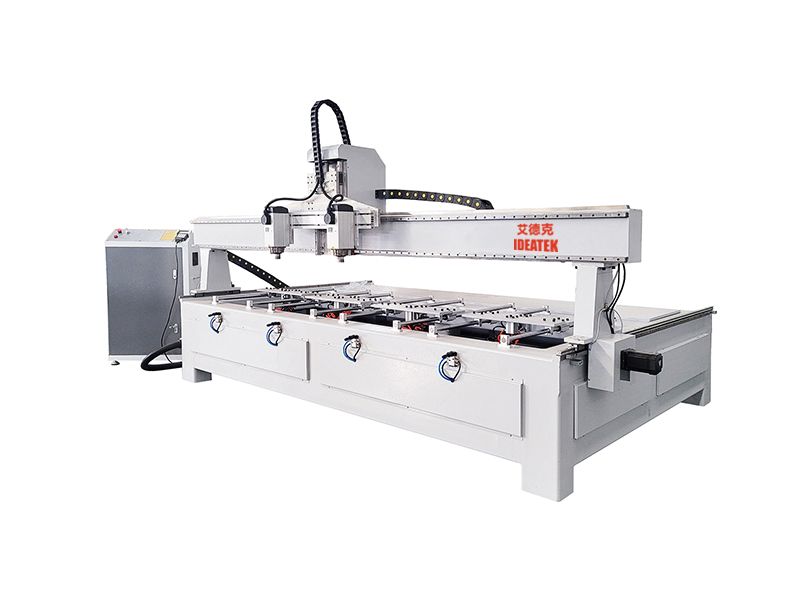

HJS2412-Q3
Tel: +86 187 0640 8064
WhatsApp: +86 187 0640 8064
Email: ideatekhongi@gmail.com
CONTACT
WhatsApp

Product Details

Configuration list


NameQuantity
1. Beijing RZTH handle system1
2. X-axis Shenzhen leadshine2206 hybrid servo1
3. Y-axis Shenzhen leadshine2206 hybrid servo2
4. Z-axis Shenzhen leadshine2206 hybrid servo1
5. China HQD air-cooled 6kw manual tool change spindle X2 sets2
6. X-axis China TZK high-precision grinding rack1
7. Y-axis China TZK high-precision grinding rack1
8. Z-axis Taiwan TBI-3210 high-precision screw1
9. X-axis China TZK-25 square rail—square slider2
10. Y-axis China TZK-25 square rail—square slider4
11. Z-axis China TZK-25 square rail—square slider2
12. Zhejiang Fuling 7.5KW vector inverter X2 units2
13. Cylinder tensioned fixed table2
14. Effective stroke (400x500mm) x 4 pieces
15. Central lubrication device1
16. Spring knife holder and inspection tool1
17. Factory quality inspection sheet1
18. Certificate1


Technical Parameters


NameParameter
X-axis maximum travel2500mm
Y-axis maximum travel1200mm
Z-axis maximum travel300mm
Maximum gantry width3000mm
Maximum gantry height1500mm
X, Y axis movement speed0⁓20000mm/min
Z axis movement speed0⁓5000mm/min
Z axis feed speed0⁓5000mm/min
X, Y, Z axis feed acceleration3m/s2
Workbench load-bearing200kg
Spindle maximum speed18000r/min
Maximum output power16kw
Machine packaging size3.2x2.2x2.5m LHW
Machine weight2ton
