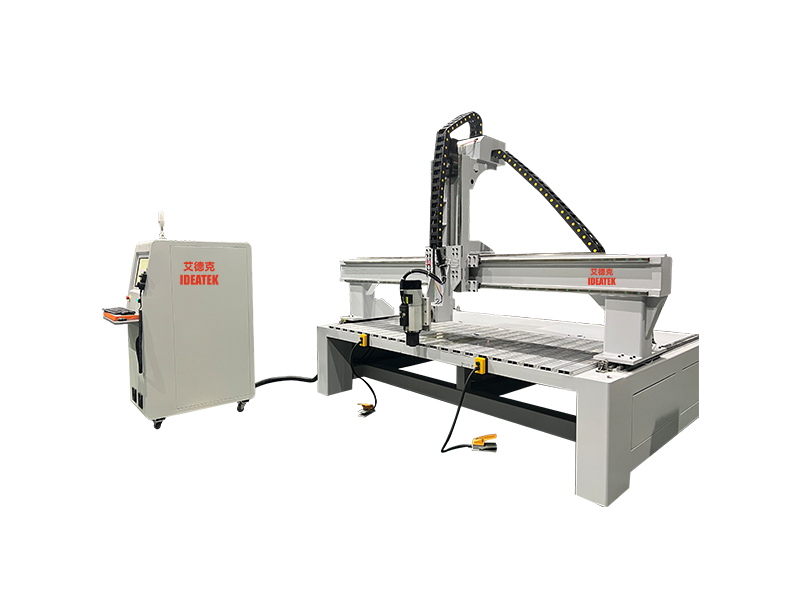

HJS2612-S4
Tel: +86 187 0640 8064
WhatsApp: +86 187 0640 8064
Email: ideatekhongi@gmail.com
CONTACT
WhatsApp

Product Details

Configuration list


NameQuantity
1. Taiwan SYNTEC 60CB standard control system1
2. X-axis Japan YASKAWA 850KW medium inertia servo motor1
3. Y-axis Japan YASKAWA 850KW medium inertia servo motor1
4. Z-axis Japan YASKAWA 850KW medium inertia brake servo motor1
5. Chinese HQD air-cooled spindle 9kw automatic tool changer, fourth axis Italian harmonic reducer1
6. X-axis China TZK high-precision grinding rack1
7. Y-axis China TZK high-precision grinding rack1
8. Z-axis Taiwan TBI-3210 high-precision screw1
9. X-axis China TZK-30 square rail-flange slider2
10. Y-axis China TZK-30 square rail-flange slider2
11. Z-axis China TZK-30 square rail-flange slider2
12. Zhejiang Fuling 11KW vector inverter1
13. Aluminum alloy T-slot countertop1
14. Effective stroke 2600x1200mm
15. Central gas storage system1
16. Central lubrication device1
17. Automatic tool changer ISO308
18. Spring knife holder and inspection tool1
19. Factory quality inspection sheet1
20. Certificate1


Technical Parameters


NameParameters
X-axis maximum travel2600mm
Y-axis maximum travel1200mm
Z-axis maximum travel300mm
Maximum gantry width3200mm
Maximum gantry height1800mm
A-axis swing angle-120°⁓120°
X, Y axis movement speed0⁓30000mm/min
Z axis movement speed0⁓10000mm/min
A-axis moving speed170、270°/sec
X, Y axis feed speed0⁓20000mm/min
Z axis feed speed0⁓5000mm/min
X, Y, Z axis feed acceleration3m/s2
Workbench load-bearing800kg
Spindle maximum speed18000r/min
Maximum output power15kw
Machine packaging size3.5x2.2x3.7m LHW
Machine weight3.0ton
